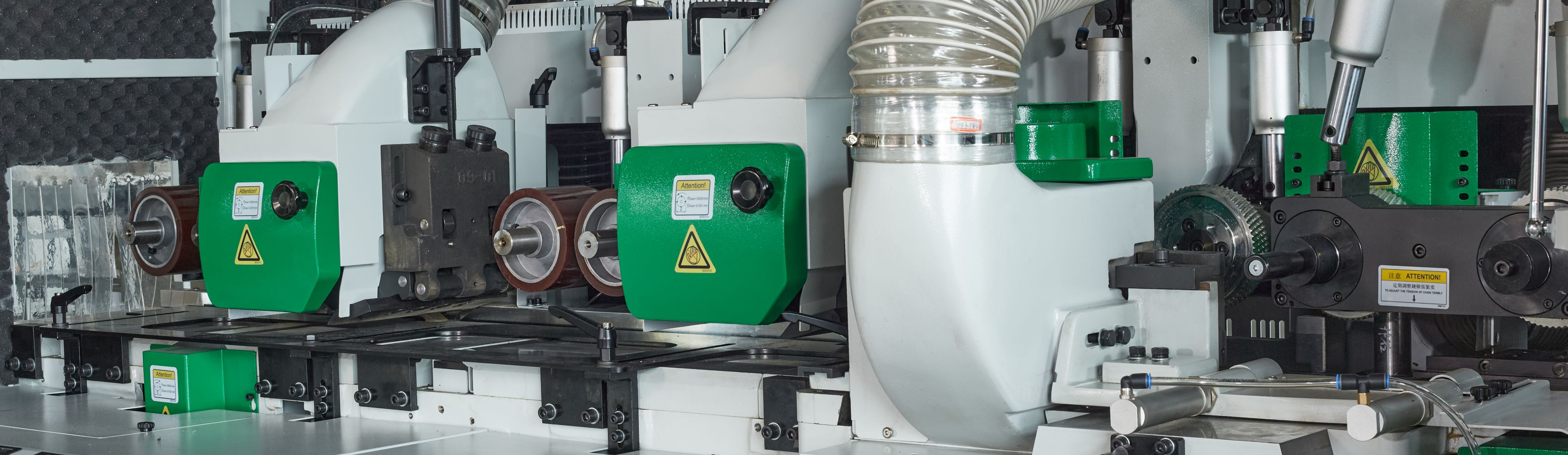

Professional solution: solid wood or MDF and HDF furniture, wooden door and so on.
1.Inverter feed speed of 6~30m/min
2.Individual motor to each spindle to ensure maximum power transmission
3.High precision spindle units with two pairs of high precision bearings each end of the assembly
4.All main spindle adjustments are carried out from outside the enclosure
5.Hard chromed bed plates to minimise bed wear
6.Short piece driven top feed roller unit for greater feeding control around the right side spindle
7.A group of side pressure wheels on the right side of the left spindle, adjusted the pressure flexible by pneumatic.
8.As our standard, short pieces device with pneumatic double-direction( press and raise) , you can make the workpieces feeding or back in anytime.
9. Pneumatic in-feed bottom helical roller is more suitable for large deformation and high moisture of the wood to feed .
10. Multi-group bottom driving roller to improve the feed effect .
11.Pneumatic pressure loading to top feed rollers separately adjustable, for easy of feeding stock with variation in thickness
12. Adjustable out-feed side pressure plate can meet the different thickness of material output steadily.
13.Manual bed lubrication to reduce friction and improve feeding difficult timbers
14.Adopting electric component from international class with steady quality
15.Sealed safety enclose to reduce noise levels, improve extraction and operator safety
Specification &Type |
RMM623 |
RMM523 |
RMM423 |
|
|
Working Width (mm) |
Min. |
20 |
20 |
20 |
|
Max. |
230 |
230 |
230 |
|
|
Working Thickness (mm) |
Min. |
8 |
8 |
8 |
|
Max. |
160 |
160 |
160 |
|
|
Number of spindles |
6 |
5 |
4 |
|
|
Speed of spindes(r/min) |
6000 |
6000 |
6000 |
|
|
Cutting circles (min~max) (mm) |
First Bottom Spindle |
Ø110 ~ Ø145 |
Ø110 ~ Ø145 |
Ø108 ~ Ø145 |
|
Right side Spindle |
Ø110 ~ Ø200 |
Ø110 ~ Ø200 |
Ø108 ~ Ø200 |
|
|
Left side Spindle |
Ø110~ Ø200 |
Ø110~ Ø200 |
Ø108 ~ Ø200 |
|
|
First Top Spindle |
Ø110 ~ Ø200 |
Ø110 ~ Ø200 |
Ø108 ~ Ø200 |
|
|
Second Top Spindle |
Ø110~ Ø200 |
~~~~~ |
~~~~~ |
|
|
Second Bottom Spindle |
Ø110~ Ø200 |
Ø110 ~ Ø200 |
~~~~~ |
|
|
Universal spindle |
~~~~~ |
~~~~~ |
~~~~~ |
|
|
Max. Length for installing cutter block（mm） |
~~~~~ |
~~~~~ |
~~~~~ |
|
|
Spindle diameter (mm) |
Ø40 |
Ø40 |
Ø40 |
|
|
Rotation angle for universal spindle |
~~~~~ |
~~~~~ |
~~~~~ |
|
|

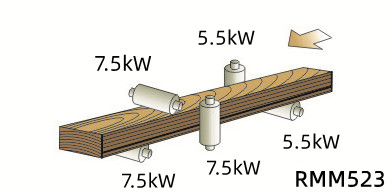

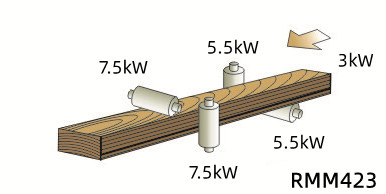

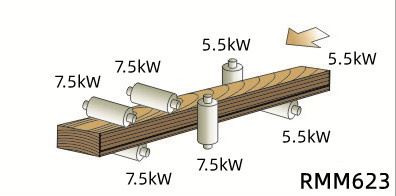

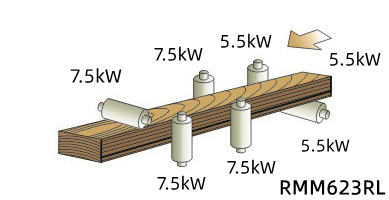

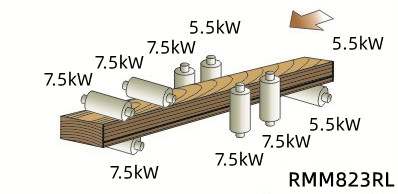

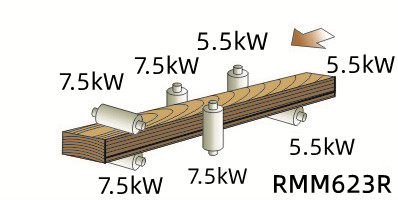

Basice motor powers (kW) |
First Bottom Spindle |
5.5 kW/7.5HP |
5.5 kW/7.5HP |
5.5 kW/7.5HP |
|
Right side Spindle |
5.5 kW/7.5HP |
5.5 kW/7.5HP |
5.5 kW/7.5HP |
|
|
Left side Spindle |
5.5 kW/7.5HP |
5.5 kW/7.5HP |
5.5 kW/7.5HP |
|
|
First Top Spindle |
7.5 kW/10HP |
7.5 kW/10HP |
7.5 kW/10HP |
|
|
Second Top Spindle |
5.5 kW/7.5HP |
- |
- |
|
|
Second Bottom Spindle |
7.5 kW/10HP |
7.5 kW/10HP |
- |
|
|
Universal spindle |
- |
- |
- |
|
|
Universal spindle rise & fall |
- |
- |
- |
|
|
Feed |
4kW/5.5HP |
3kW/4HP |
3kW/4HP |
|
|
Feed beam rise & fall |
1.1kW /1.5HP |
1.1kW /1.5HP |
1.1kW /1.5HP |
|
|
Total motor power(KW) |
42.1kW /57HP |
35.6kW /48HP |
28.1kW /38HP |
|
|
Feed speed (m/min) (Inverter ) |
6~30 |
6~30 |
6~30 |
|
|
Dust pipe diameter (mm) |
Ø150 |
Ø150 |
Ø150 |
|
|
Overall machine dimensions (L×W×H) (mm) |
4760×1676 ×1730 |
3740×1656× 1730 |
3540×1656× 1730 |
|
|
Weight (tons approx) (T) |
4.6 |
3.8 |
3.4 |
|
Note:Any variation to the specification above mentioned will not be further notified since the product specification and design keeps on changing all the time
A: The standard M23 four-side moulder series is applicable to standard four-sided machining of solid wood, MDF/HDF furniture, wooden doors and other products.
A: Working width: 20–230 mm; Working thickness: 8–160 mm; Feeding speed: 6–30 m/min. Models cover RMM623, RMM523 and RMM423. Special cutter spindle arrangements are also available, feel free to contact us for details.
A: Customers are advised to prepare workpiece drawings, material type, wood moisture content, raw material dimension range, target finished dimensions, shift production target, existing upstream and downstream equipment, workshop layout, power supply, air source and dust extraction conditions, together with requirements for automatic loading, conveying, unloading or production line connection.
A: M23 is the standard model series. Choose M23U if universal spindles are required; opt for M23H/M23MH for high-speed mass production capacity; select M23E for economical and small-batch processing demands.
