RMM623ES longitudinal sawing Four-side moulder

Professional solution: multi-piece forming processing of anti-corrosion wood, keel wood strips, etc.

Characteristic

  • 1. Inverter to feed 6-30m/min.
  • 2. Equipped with three sets of rolling wheels for easy feeding of large wood.

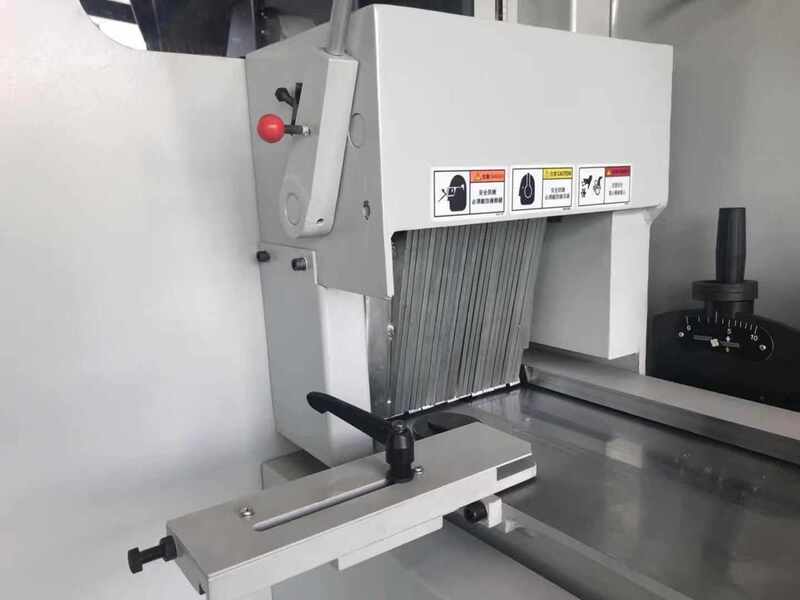

  • 3. Configuring dual anti-rebound device in front of the feeding entrance ,effectively prevent the rebounding of the wood.

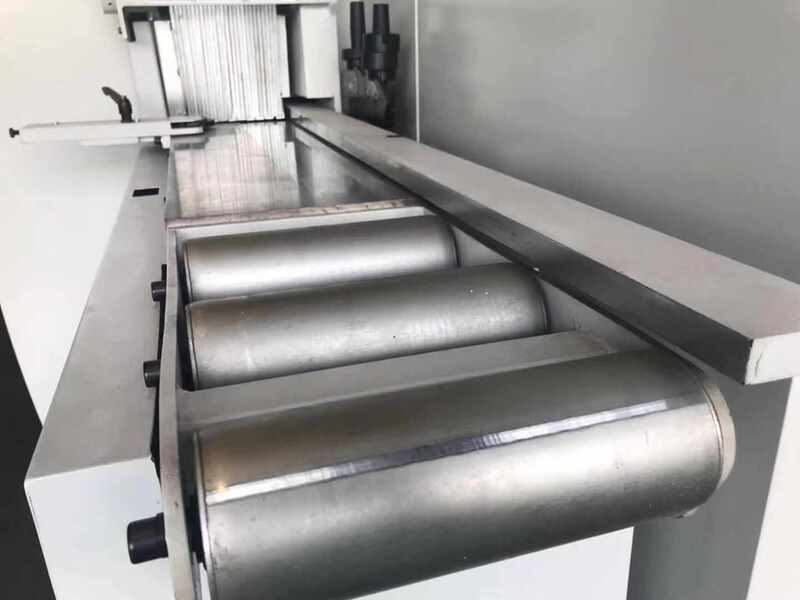

  • 4.Multiple sets of driving bottom rollers for enhancing feeding performance, reduce table wear.
  • 5.The top and bottom saw spindle are equipped with 22kw and 30kw high-power motors respectively, to meet the requirements of customers to cut multiple pieces at a time.
  • 6.Equipped with shaft cooling and cleaning function, it can increasing the life of saw blades and ensure the precision of cutting.
  • 7.Electric lift for top and bottom sawing spindle to save adjustment time.
  • 8.The working thickness is 200mm, which effectively meets the processing range of wood for preservatives and outdoor decoration,gardens,ets.
  • 9.Two high precision bearings for supporting of the front and backward of the spindle, it is more suitable for heavy cutting.
  • 10.Two sets of large feed wheels at the infeed entrance are used to increase the feeding capacity.

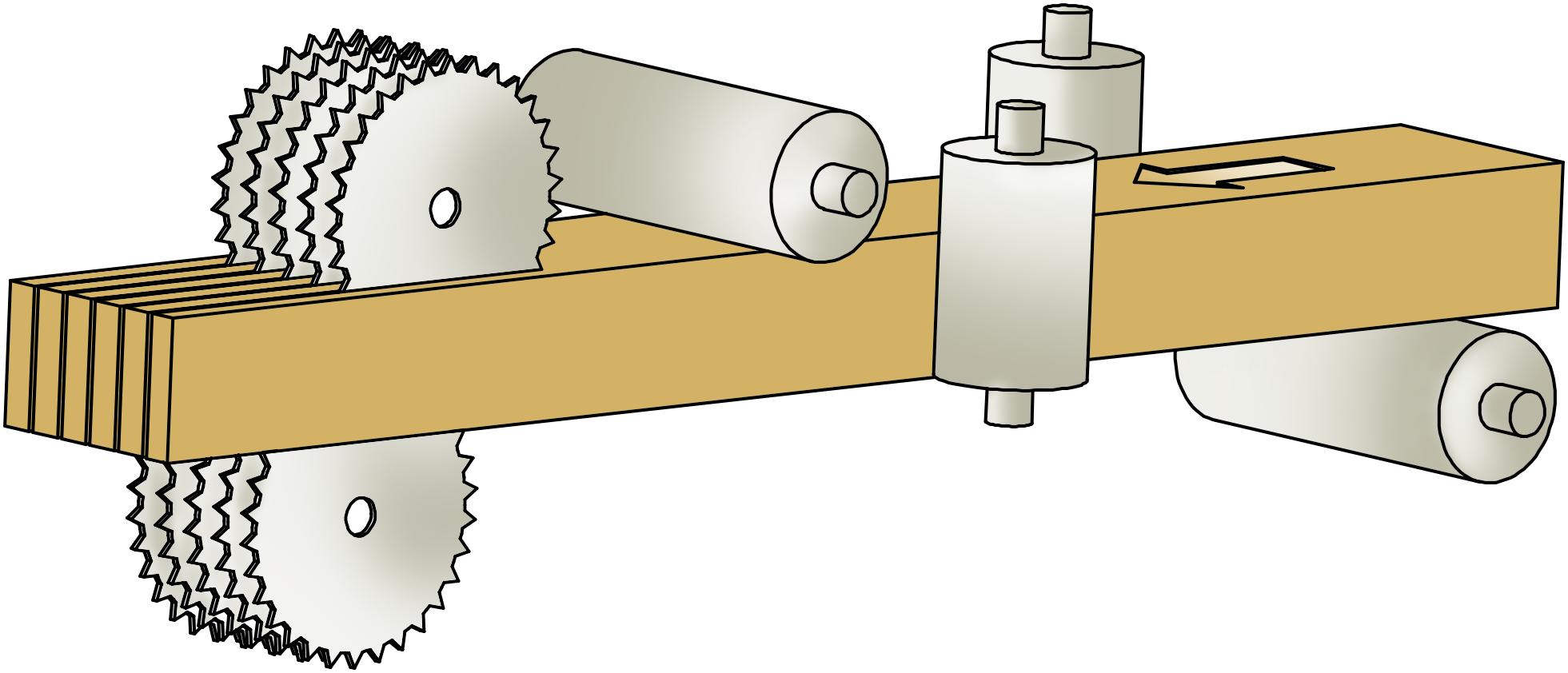

Cutter shaft arrangement



Technical Parameter



Specification&type

RMM623ES

Working width (mm) Min 20
Max 230
Working thickness (mm) Min. 10
Max 200
Min processing length 5
Number of spindles 6
rotation for milling sha6ft (r/min)/ otation for saw shaft (r/min) 6000/4000
Cutting circle (min-max)(mm) First bottom spindle φ110-φ145
Right side spindle φ110-φ200
Left side spindle φ110-φ200
Top spindle φ110-φ200
top saw shaf φ180-φ320
bottom saw shaft φ180-φ320
Spindle diameter (mm) Spindle φ40
Saw unit φ50
Motor power(kW) bottom spindle 11kW/15HP
Right spindle 7.5kW/10HP
Left spindle 11kW/15HP
Top spindle 11kW/15HP
top saw shat 22kW/30HP
bottom saw shaft 30kW/40HP
Feed 7.5kW/10HP
Feed beam rise &fall 0.75kW/1HP
top saw shaft lifting 0.25kW/0.35HP
bottom saw shaft lifting 0.25kW/0.35HP
Total motor power kW 101.25kW/136.7HP
speed (m/min) (Inverter for feed) 6-30
Dust pipe diameter (mm) φ150
Overall machine dimensions
(L×W×H) (mm)
4550×1980×1730
Weight (T) 5.9

Note:Any variation to the specification above mentioned will not be further notified since the product specification and design keeps on changing all the time.
