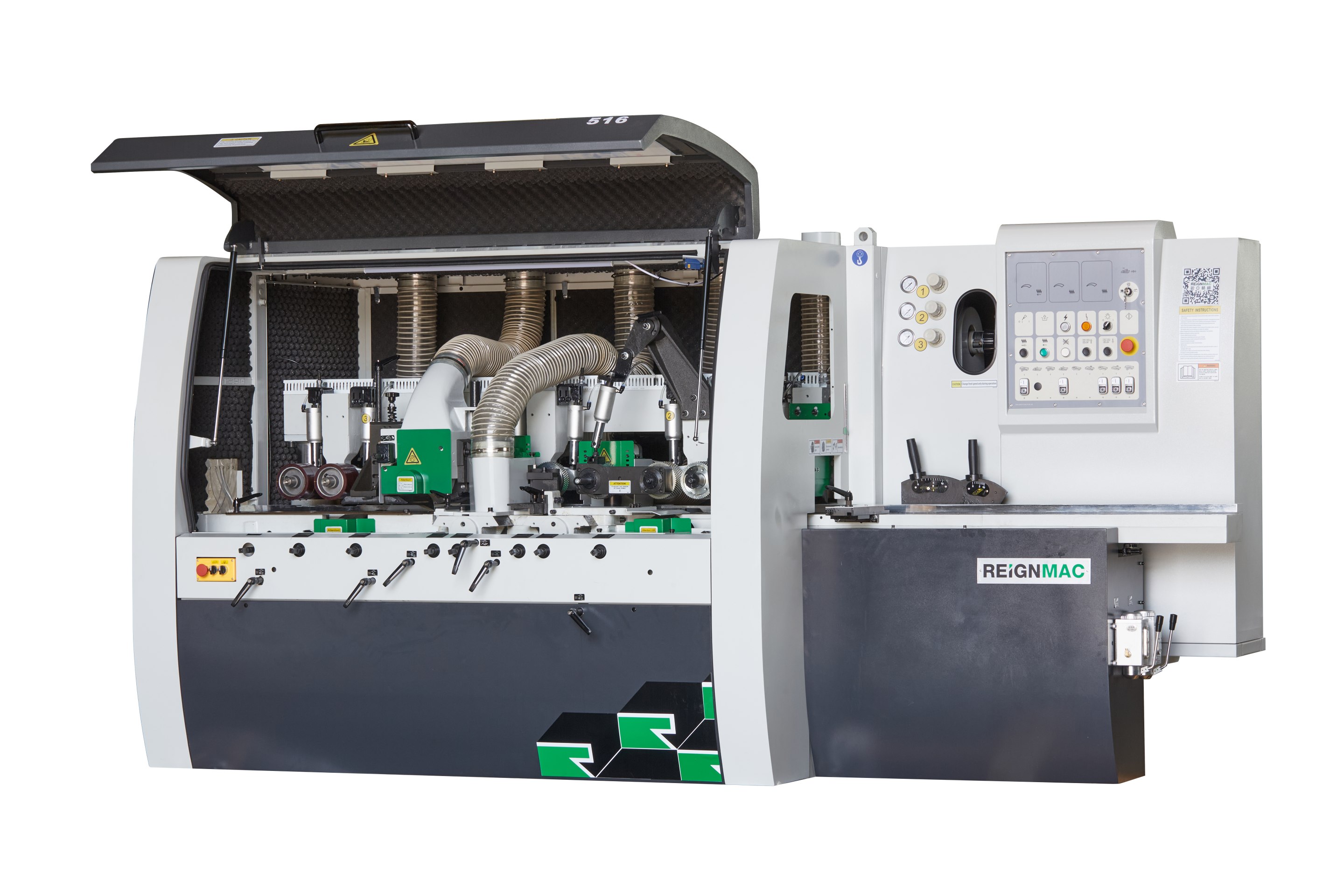

Professional solution for processing Medium hard wood strip, MDF strip, HDF strip, floor, doors, solid wood furniture and Square boards.

Get Quote

Characteristic

1.Stepless speed change device 6-24m/min

2.Individual motor to each spindle to ensure maximum cutting

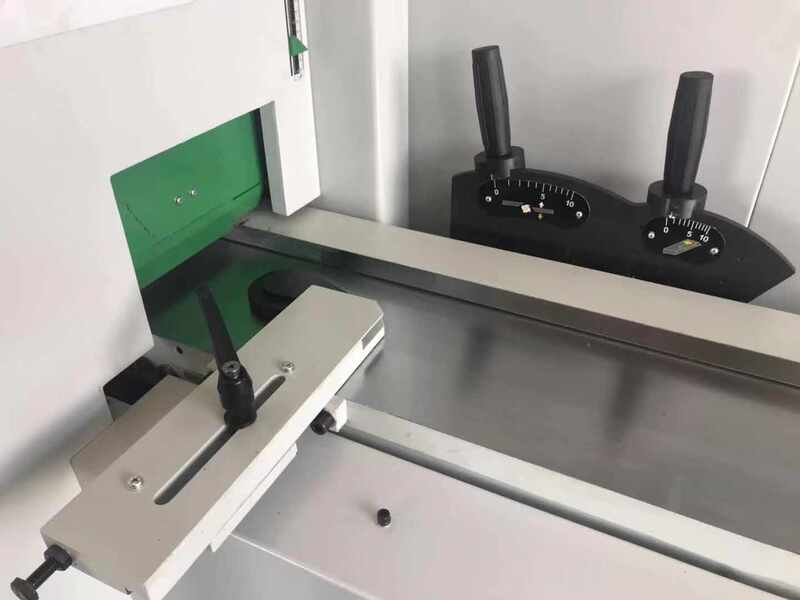

3.all spindle adjustments are carried out in front of the machine for convenience

4.Hard chromb treatment has been adopted for the durability of the work table surface.

5.Chain-wheel box is equipped for advancing the smooth feeding of short piece availably

6.Bottom driving bed rollers for enhancing feeding performance

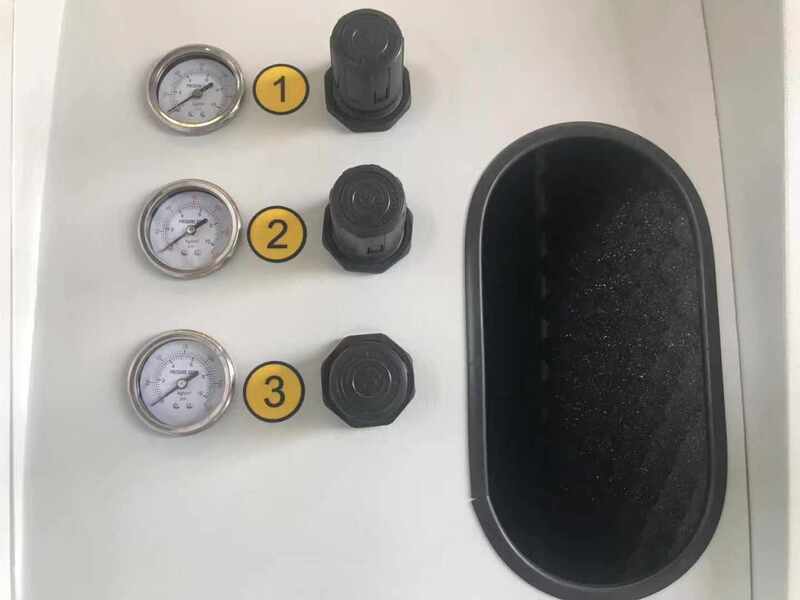

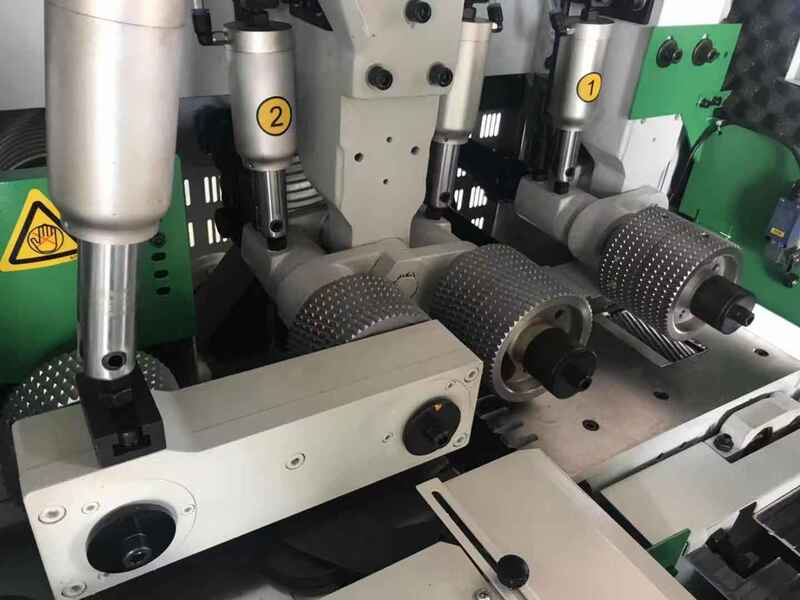

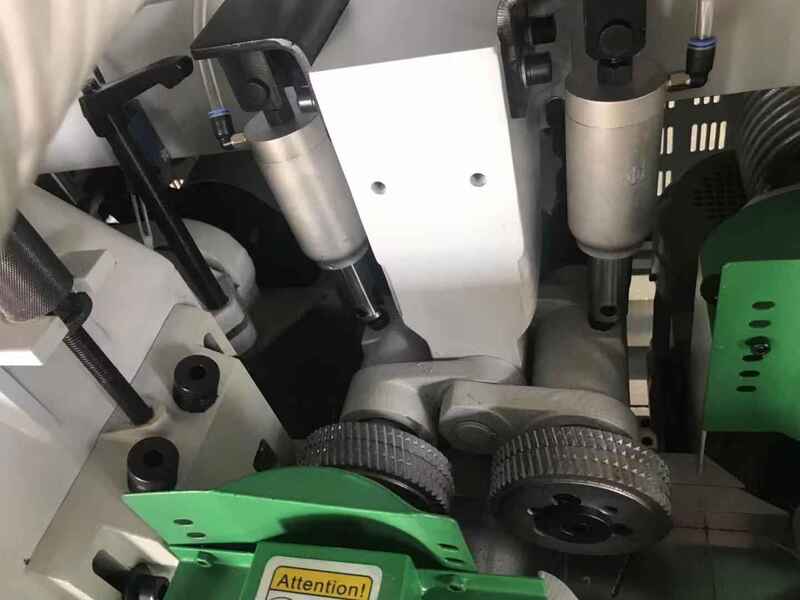

7.Pneumatic pressure loading to top feed rollers separately adjustable for easy of feeding stock with variation in thickness.

8.Manual lubrication to the work table and carriage , easy to centralized control and shortcut.

9.Sealed safety enclosure avoid splashing of wood chips and insulate the noises , it is good for the safe protection.

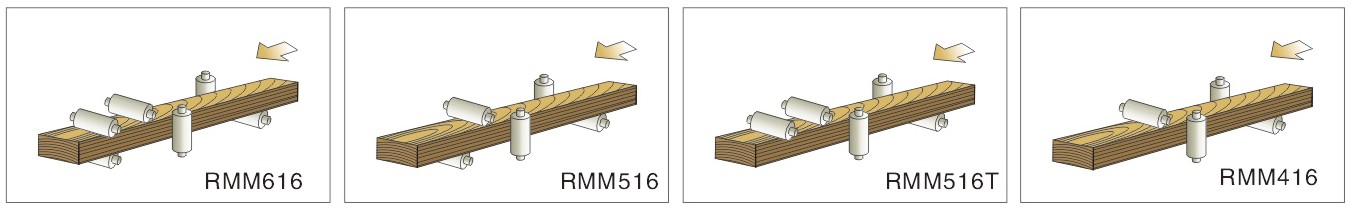

M16 series cutter shaft arrangement

Technical Parameter

Specification & type		RMM416	RMM516	RMM516T	RMM616
Working Width (mm)	Min.	20	20	20	20
Working Width (mm)	Max.	165	165	165	165
Working thickness(mm)	Min.	10	10	8	10
Working thickness(mm)	Max.	100	100	100	100
Number of spindles		4	5	5	6
Speed of spindles(r/min)		6000	6000	6000	6000
Cutting circles (max~min) (mm)	First bottom Spindle	Ø110 ~ Ø125	Ø110 ~ Ø125	Ø110 ~ Ø125	Ø110 ~ Ø125
	Right side Spindle	Ø110 ~ Ø160	Ø110 ~ Ø160	Ø110 ~ Ø160	Ø110 ~ Ø160
	Left side Spindle	Ø110 ~ Ø160	Ø110 ~ Ø160	Ø110 ~ Ø160	Ø110 ~ Ø160
	First top Spindle	Ø110 ~ Ø160	Ø110 ~ Ø160	Ø110 ~ Ø160	Ø110 ~ Ø160
	Second top Spindle	~~~~~~~~	~~~~~~~~	Ø110 ~ Ø160	Ø110 ~ Ø160
	Second bottom spindle	~~~~~~~~	Ø110 ~ Ø160	~~~~~~~~	Ø110 ~ Ø160
Spindle diameter (mm)		Ø40	Ø40	Ø40	Ø40
Motor powers (kW)	First bottom Spindle	4kW/5.5HP	4kW/5.5HP	4kW/5.5HP	4kW/5.5HP
	Right side Spindle	4kW/5.5HP	4kW/5.5HP	4kW/5.5HP	4kW/5.5HP
	Left side Spindle	4kW/5.5HP	4kW/5.5HP	4kW/5.5HP	4kW/5.5HP
	First top Spindle	5.5kW/7.5HP	5.5kW/7.5HP	5.5kW/7.5HP	5.5kW/7.5HP
	Second top Spindle	~~~~~~~~	~~~~~~~~	4kW/5.5HP	4kW/5.5HP
	Second bottom spindle	~~~~~~~~	4kW/5.5HP	~~~~~~~~	4kW/5.5HP
	Feed	3kW/4HP	3kW/4HP	3kW/4HP	4kW/5.5HP
	Feed beam rise & fall	0.75kW/1HP	0.75kW/1HP	0.75kW/1HP	0.75kW/1HP
Total motor power (kW)		21.6kW/29.5 HP	25.6kW/35HP	25.6kW/35HP	30.6kW/42HP
Feed speed (mm) (Stepless variable feed)		6~24	6~24	6~24	6~24
Dust outlet diameter (mm)		Ø130	Ø130	Ø130	Ø130
Overall machine dimensions (L×W×H) (mm)		2808×1572×1700	3523×1572×1700	3945×1572×1700	3993×1572×1700
Weight (tons approx) (T)		2.8	3.3	3.4	3

Note: Any variation to the specification above mentioned will not be further notified since the product specification and designs keeps on changing.

Q1: What processing scenarios is the M16 four-side planer series mainly suitable for?

A: The M16 four-side planer series is designed for processing small-sized workpieces including medium-hard wood strips, MDF/HDF strips, flooring, door parts, solid wood furniture and square timber.

Q2: Which parameters should be displayed prioritized on the page of the M16 four-side planer series?

A: Working width: 20–165 mm; Working thickness: 8/10–100 mm; Feed speed: 6–24 m/min; Models available: RMM416, RMM516, RMM516T, RMM616.

Q3: What documents and information should be prepared before customers enquire about the M16 four-side planer series?

A: You need to prepare workpiece drawings, material type, wood moisture content, incoming blank dimension range, finished product target sizes, per-shift production capacity, existing upstream and downstream equipment, workshop layout, power supply, compressed air and dust removal conditions, together with requirements for automatic feeding, conveying, unloading or whole production line connection.

Q4: How to differentiate the M16 four-side planer series from adjacent product series?

A: The M16 series is ideal for small workpiece sizes, lower production output or workshops with limited installation space. Choose M20 or M23 series if you need wider processing width and higher productivity.
