Professional solution for small quantity multi-species working for light duty of four side squaring of profiling.
1. Equipped with 6m/min and 12m/min feeding speed.
2. Individual motor to each spindle to ensure maximm cutting.
3. All spindle adjustments are carried out in front of the machine for convenience.
4. Hard chormb treament has been adopted for the durability of work table surface.
5.Equipped with short chain gear box, good for process the short pieces.
6.Pneumatic pressure loading to top feed rollers separately adjustable for easy of feeding stock with variation in thickness.
7.Feeding system adopts the chain for transferring, it is convenience for maintance.
8.Manual bed lubrication to reduce friction and improve feeding difficult timbers.
9.Dopting electric component from international class with steady quality.
10.Sealed safety enclose to reduce noise levels, improve extraction and operator safety.
Specification&type |
|
RMM423E |
RMM523UE |
| Working width | Min. | 25 | 25 |
| Max. | 230 | 230 | |
| Working thickness | Min. | 8 | 8 |
| Max. | 120 | 120 | |
| Number of spindles | 4 | 5 | |
| Number of rotation | 6000 | 6000 | |
| Cutting circle (min-max) | Bottom spindle | Ø120 | Ø120 |
| Right spindle | Ø110-Ø180 | Ø110-Ø180 | |
| Left spindle | Ø110-Ø180 | Ø110-Ø180 | |
| Top spindle | Ø110-Ø180 | Ø110-Ø180 | |
| Universal spindle | ------ | Ø110-Ø180 | |
| Spindle diameter | Ø40 | Ø40 | |
| Motor power(kW) | Bottom spindle | 4kW/5.5HP | 4kW/5.5HP |
| Right spindle | 4kW/5.5HP | 4kW/5.5HP | |
| Left spindle | 4kW/5.5HP | 4kW/5.5HP | |
| Top spindl | 5.5kW/7.5HP | 5.5kW/7.5HP | |
| Universal spindle | 4kW/5.5HP | ||
| Feed | 1.5/1.8kW/2/2.5HP | 2/2.4kW/2.7/3.3HP | |
| Feed beam & fall | 0.37kW/0.5HP | 0.37kW/0.5HP | |
| Tatal motor powe | 19.37/19.67kW/26.34/26.75HP | 23.87/24.27kW/32.5/33HP | |
| Feed speed (Double feed speed) | 6&12 | 6&12 | |
| Dust pipe diameter | Ø120 | Ø120 | |
| Overall machinedimensions(LxWxH) | 3420×1500×1710 | 4245×1500×1710 | |
| Weight(tons approx) | 1.7 | 2.4 | |
Note: Any variation to the specification above mentioned will not be further notified since the product specification and designs keeps on changing.

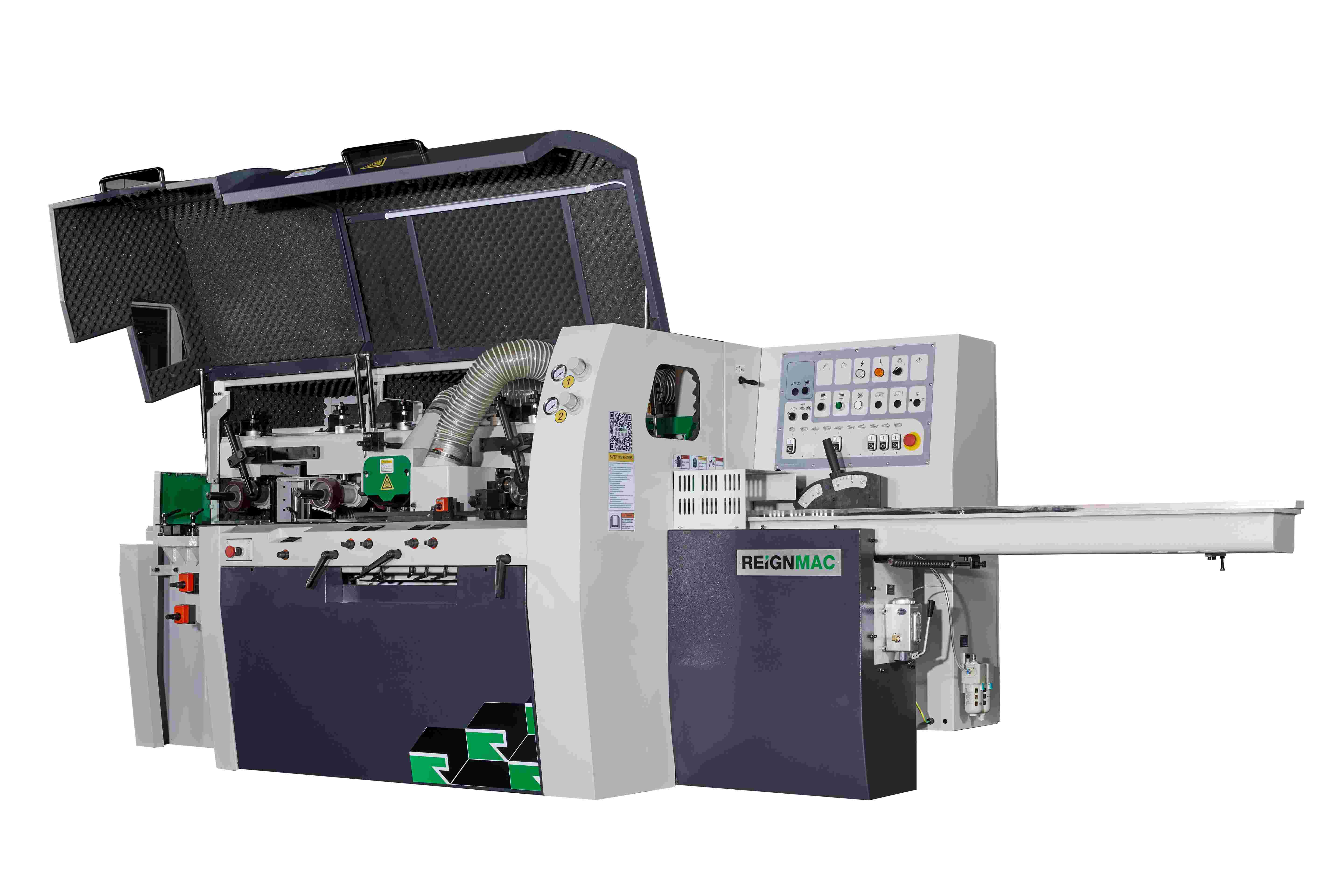

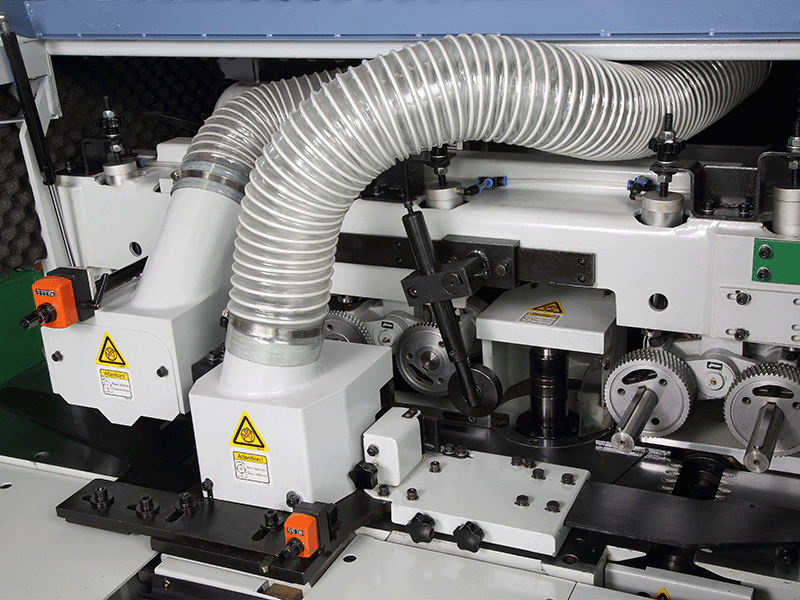

A: The M23E economical four-side moulder series is ideal for small-batch, multi-variety, light-cutting four-sided squaring or profiling machining.
A: Working width: 25–230 mm; Working thickness: 8–120 mm; Two-speed feeding: 6 & 12 m/min; Spindle diameter: Ø40. Models include RMM423E and RMM523UE.
A: Customers are recommended to prepare workpiece drawings, material type, wood moisture content, raw material dimension range, target finished dimensions, shift output target, existing upstream and downstream equipment, workshop layout, power supply, air source and dust extraction conditions, as well as requirements for automatic loading, conveying, unloading or production line integration.
A: The M23E features economy and light cutting as core advantages. For continuous mass production, heavy cutting or higher feeding speed, customers may choose M20, M23 or M23H series instead.
